Transmission Assembly Repairs

10  TON VOLTAS FORKLIFT - TRANSMISSION REPAIRS

CONDITION OF FORKLIFT

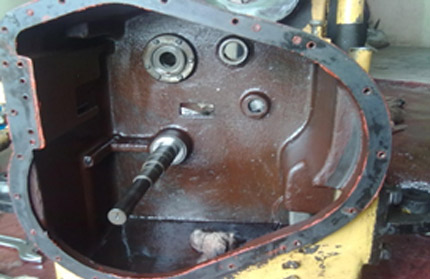

Transmission-assembly-CT100-3F3R-ceased

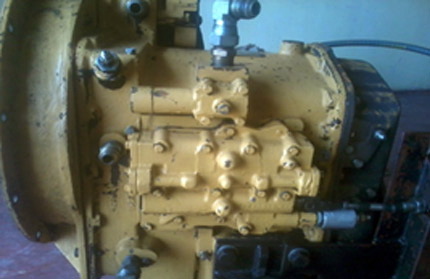

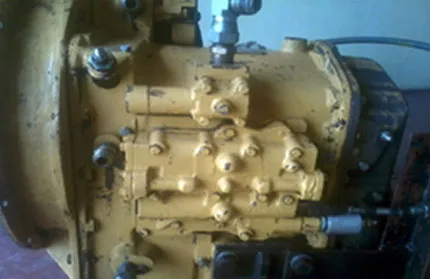

OPENED UP TRANSMISSION BODY AND RENDERED INOPERATIVE

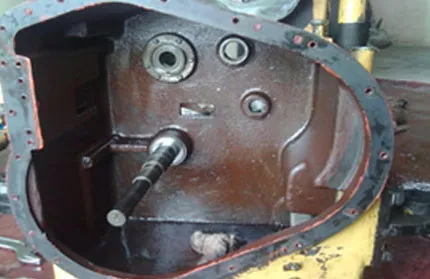

TRANSMISSION ASSEMBLY CT100 3F/3R CEASED

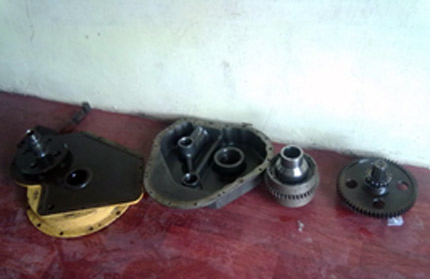

Transmission-dismantled-components

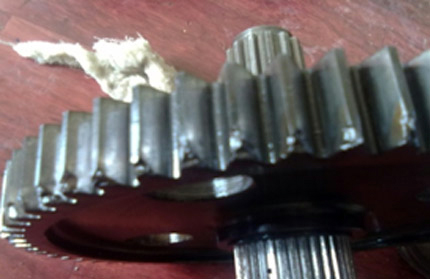

Output-drive-Gear-Teeth-broken-and-chipped
Rocker Oil  Pressure Checked Settings Done For Tappet
OUTPUT DRIVE GEAR TEETH BROKEN AND CHIPPED

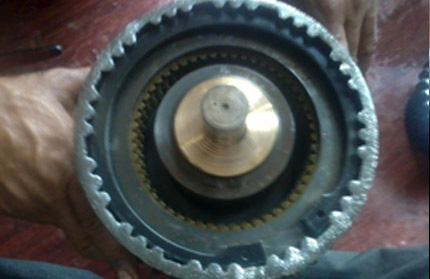

Outer Selector Pack Forward Gear tooth Worn out

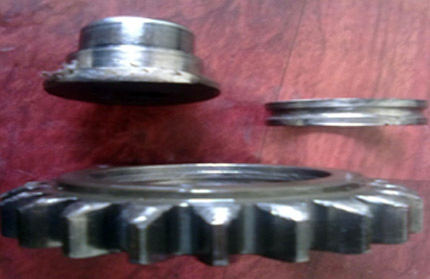

Inner bearing worn and Bearing seat damaged
Outer Selector Pack Forward Gear tooth Worn out
Inner bearing worn and Bearing seat damaged

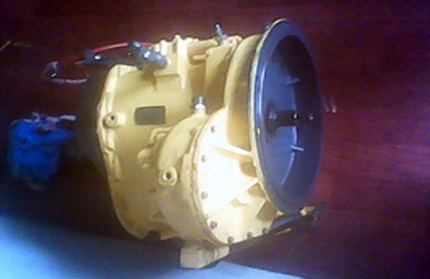

After careful  scrutiny and identification the various parts were put together

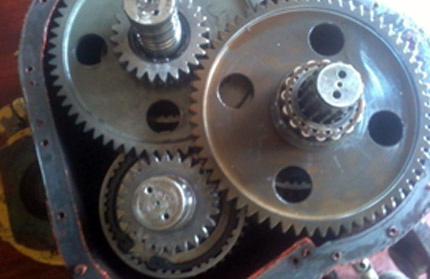

The gear train was cleaned, repaired and defective parts replaced
After careful scrutiny and identification the various parts were put together

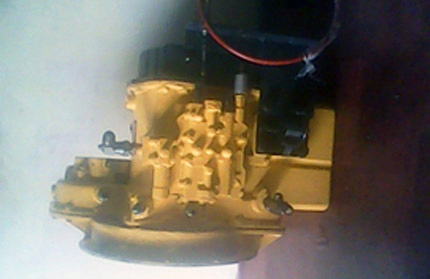

The transmission assembling in progress with repaired and replaced spares
The transmission assembling in progress with repaired and replaced spares

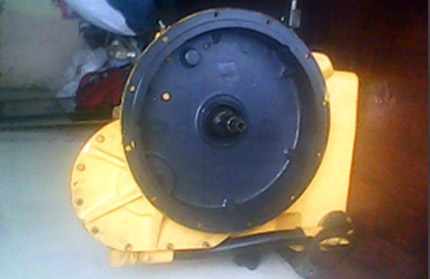

Other side view of assembly of transmission, all ready to be mounted on the forklift
